POTENTIOMETERS

  • CONTROL POT
    B 50 K

    Resistance value
    50 kOhm
    Taper
    B (lin.)
    Center click
    yes
    Dimensions (mm)
    6,0 solid shaft
    Thread diameter
    7,0 - metric
    Shaft length
    10,0
    Mounting hole
    7,5
    Housing diameter
    17,0
  • CONTROL POT
    A 250 K

    Resistance value
    250 kOhm
    Taper
    A (log.)
    Center click
    no
    Dimensions (mm)
    6,0 solid shaft
    Thread diameter
    7,0 - metric
    Shaft length
    10,0
    Mounting hole
    7,5
    Housing diameter
    17,0
  • CONTROL POT
    B 250 K

    Resistance value
    250 kOhm
    Taper
    B (lin.)
    Center click
    no
    Dimensions (mm)
    6,0 solid shaft
    Thread diameter
    7,0 - metric
    Shaft length
    10,0
    Mounting hole
    7,5
    Housing diameter
    17,0

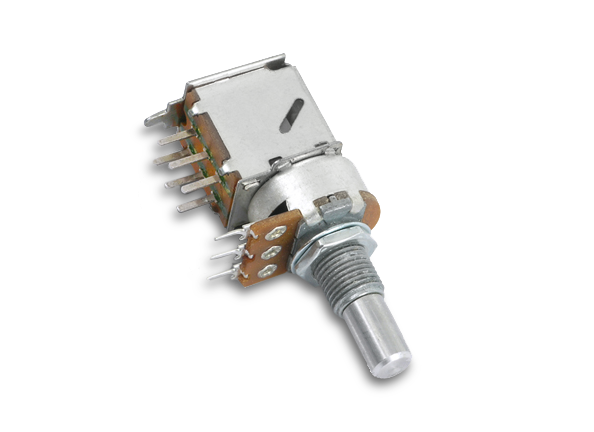

  • CONTROL POT PUSH/PULL
    B 250 K

    Resistance value
    250 kOhm
    Taper
    B (lin.)
    Center click
    no
    Dimensions (mm)
    6,0 solid shaft
    Thread diameter
    7,0 - metric
    Shaft length
    10,0
    Mounting hole
    7,5
    Housing diameter
    17,0
  • CONTROL POT TREBLE/CUT
    B 50 K / A 250 K

    Resistance value
    50 kOhm
    Taper
    B (lin.)
    Resistance value
    250 kOhm
    Taper
    A (log.)
    Center click
    yes
    Dimensions (mm)
    6,0 solid shaft
    Thread diameter
    7,0 - metric
    Shaft length
    10,0
    Mounting hole
    7,5
    Housing diameter
    17,0
  • CONTROL POT BLEND
    C 250 K

    Resistance value
    250 kOhm
    Center click
    yes
    Dimensions (mm)
    6,0 solid shaft
    Thread diameter
    7,0 - metric
    Shaft length
    10,0
    Mounting hole
    7,5
    Housing diameter
    17,0
